Stinger Folding Knife Kit: Instructions: Download

Instructions for building the KnifeKits.com
Stinger Knife Kit with Handle Scales
(Assembly Model: STGR_W_1)

----------------
Tools Recommended:
Torx screwdrivers (T5 and T8)

-----------------

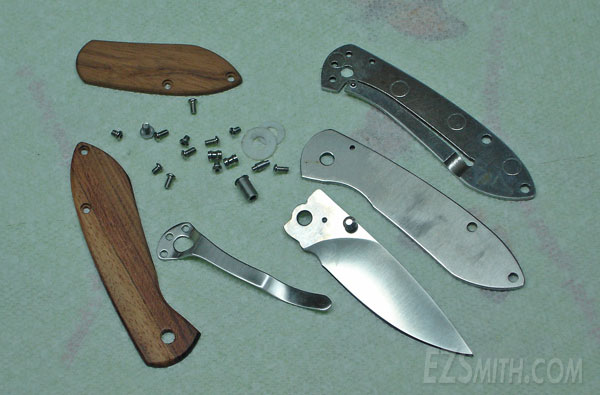

Spread out the parts in this kit to make them easy to locate during the
assembly process. (This project shows Bubinga Wood Scales)

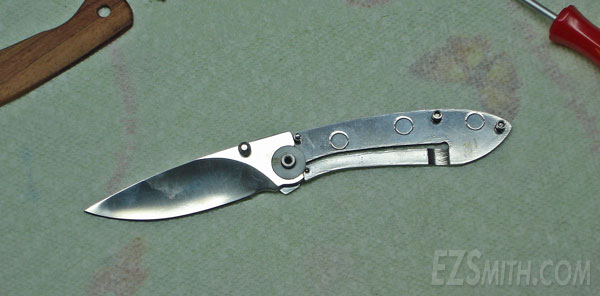

Start by putting the pivot pin, blade stop pin, and the two standoffs on the

lock-side liner. Add the small washer to the pivot, then the blade, then

place the larger washer on top.

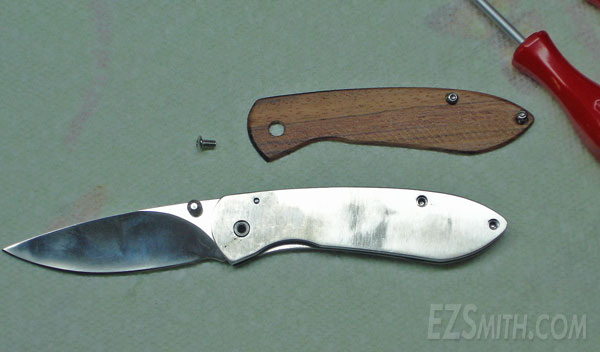

 Add the remaining liner. Next, add the pivot screw.

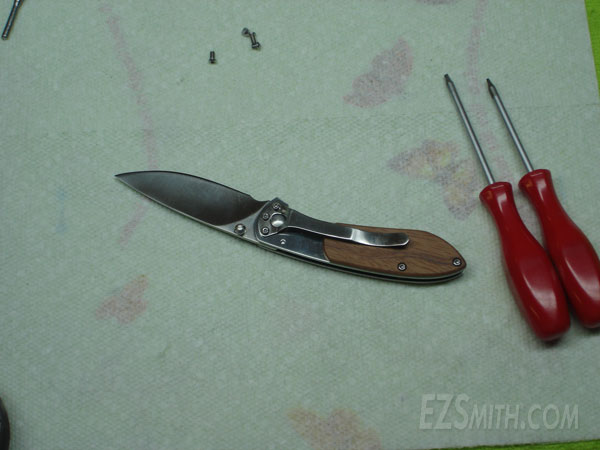

Add the right and left side scales with the assembly screws. Next, add

the pocket clip. Finish and polish the scales to suit before installing.

Finally, check the overall lockup, general assembly and oil pivot
for desired action.

---------------------------------------------------------

Congratulations, you now have a beautiful Stinger folder!

Be careful before, during and after assembly!
 It’s sharp!

---------------------------------------------------------
